- Brand Name: Fresh Leaf Energy
- Origin: Mainland China
- Number of Panels: >20
- Flexible Solar Panel: No
- Foldable Solar Panel: No
- Type: Solar Panel
- Model Number: Panneau Solaire Kit Complet 380v Maison 10000 w
- Size: Fotovoltaic System 10000W 10kW 380V
- Material: Monocrystalline Silicon
- Nominal Capacity: On Grid Solar System 10000W 10KW 380V
- Number of Cells: Growatt Grid Tie System 10000W 10KW 380v Three Phrase
- Max. Power: Panneau Solaire Kit Complet 380v Maison 10000W
- is_customized: Yes
- Certification: CE
- Solar Anlage Komplett: Yes
- Frequency: 50/60HZ
- Inverter: 10000W 380V 410V
- Solar Panels: 10000W
- Growatt Inverter: Yes
- Solar System: Yes
Solar Panel Kit Complete For Home 10000 w 380V 3 Phrase Growatt Grid Tie Inverter 10KW Dual MPPT PV Panel 500W On Grid System
Why choose Grid Tie Solar System
1 .Green and clean energy and protect the earth
2.Good investment ,Return on investment in 3-5 years
3.Save money for huge electricity bill
4.Stable Output in 25 yearliance
About Growatt Inverter -Top Brand For Resitencial Inverter
Warranty and certficate
Solar Panel 10 year quality warranty and Growat 5 Year quality warranty
Solar Panel 10 year quality warranty and Growat 5 Year quality warranty
Certificateof Inverter is Approved to be used on Europe :CQC, CE, VDE 0126-1-1, VDE-AR-N4105, EN50438, CEI 0-21, AS 4777
Growatt Inverter MOD10KTL3-X
The maximum conversion efficiency is 99%, China's efficiency is 98.6%, the maximum tributary input voltage is 1100V, intelligent I / V curve scanning, one-key diagnosis and wave recording, AC and DC secondary lightning protection, full power module and quad core design.
The maximum conversion efficiency is 98.4%, dual MPPT, OLED display and touch buttons.
MOD 8-11KTL3-X
· Dual MPPT · Maximum conversion efficiency 98.6% · DC overmatch 1.5 times · OLED display, touch buttons
Application scenario
Small distributed project on the roof or courtyard of the home, which can adapt to the inconsistent component orientation
Beautiful appearance
High value, home appliances
OLED display, touch buttons, light and convenient
Efficient power generation
Maximum efficiency 98.6%, string current 13A
DC 1.5 times overmatch, AC 1.1 times overload
Safe and reliable
IP65 protection grade, C5 corrosion protection grade
AC and DC secondary lightning protection, optional AFCI to prevent fire caused by arcinghts Etc
MOD 10KTL3-X Data
Input data (DC)
MOD 10KTL3-X
Maximum DC input power 15000W
Maximum DC input voltage 1100V
Starting voltage 200V
MPPT working voltage range / rated input voltage 140V-1000V/580V
Maximum input current of each string 13A
Number of MPPT / Number of MPPT strings per channel 2/1+1
Output data (AC)
Rated AC output power 10000W
Maximum AC output power 11000VA
Maximum AC output current 16.7A
Rated output voltage / range 400V/310V-476V
Grid frequency / range 50Hz,60Hz/±5Hz
Power factor 1
Power factor adjustment range 0.8 lead-0.10 lag
THDi ＜3%
AC connection type 3W+N+PE
effectiveness
Maximum efficiency 98.60%
China efficiency 98.10%
MPPT efficiency 99.90% 200 watts work 6 hours a day,

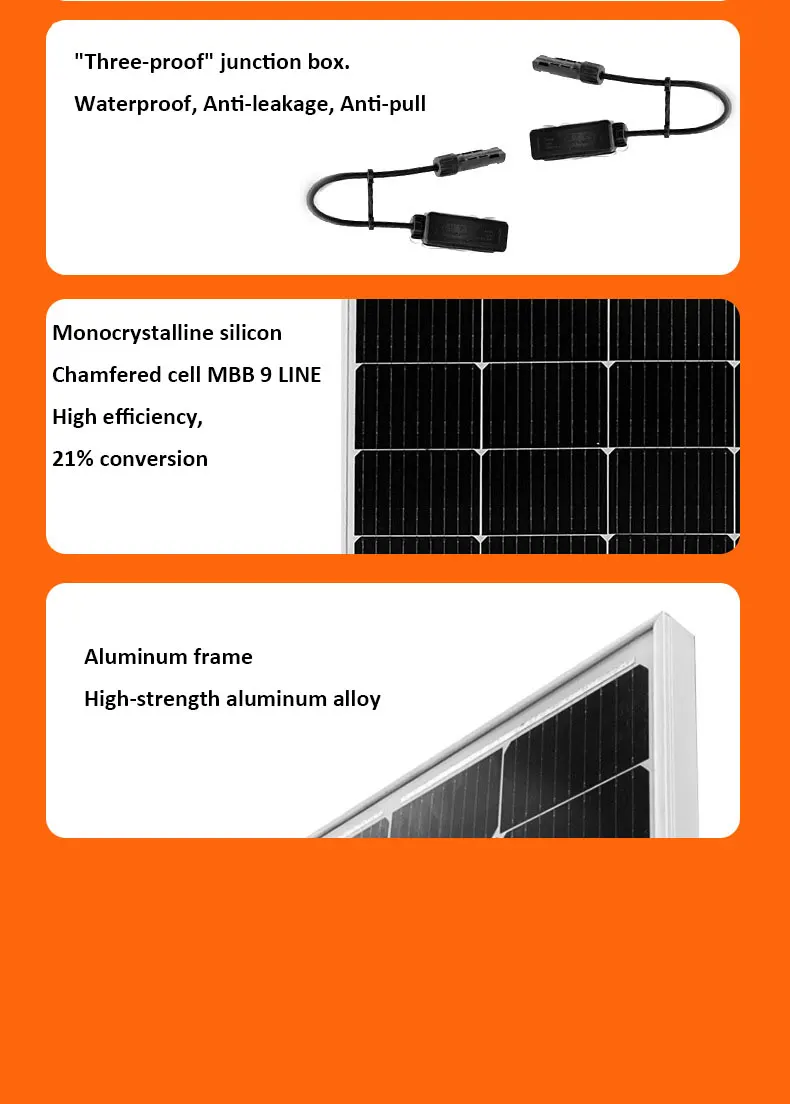

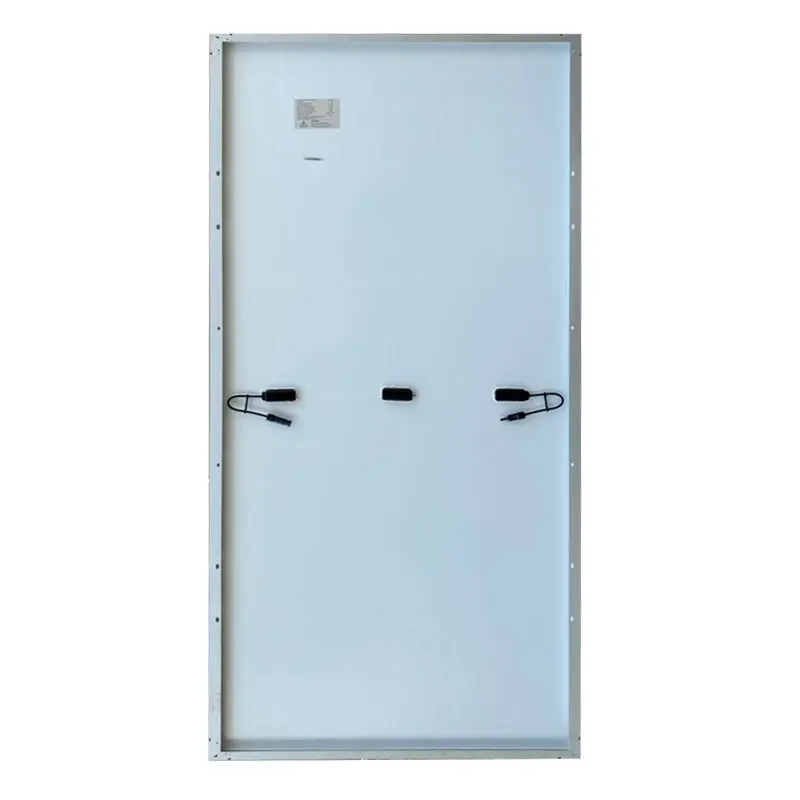

Solar Panel 500w display
What is delivery method ?
It is sea transportation to destination port .
When the buyer pay the order,the seller will find nearest port to buyer.and Await confirmation of buyer.
When the sola panel is on board,the seller will send loading bill,commercial invoice and packing list to buyer's e-mail for customs clearance.
When the solar panel reaches the port ,the buyer have to go to the port ,pay the destination port fee and tariff or duty and pick up the solar panel .
